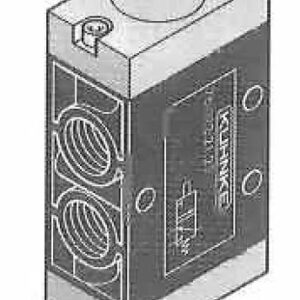

Plunger Operated, Body Mount

Used as position or end of travel detector. Valve configurations include pneumatic reset types which can be used in conjunction with pushbuttons or other control devices to manually or automatically reset valve. A double plunger is also available which can be used on machine carriages to reverse direction of travel. Operating force is 7.9 Lbs. and plunger travel is approx. 3/16 inch (5 mm).

Operating pressure range 0-145 PSI, Actuation force at 90 PSI, is approx. 7.9 Lbs.

For normally open function on 3 way valve reverse connect ports 1-3. For 2 way operation, plug port 3.

Typical valve body dimensions are 2.5″ L (3 way). 3.15″ L (4 way) x 1.375″ H x 0.75″ W. Add 1″ to L dim for pneumatic reset types. Through body mounting holes 3/16″ dia.

Plunger diameter is 0.25″ and extends .669″ from valve body. Plunger travel Is 1875″ ? 0.04″

For valve specifications see appendix. For detail dimensions contact factory.

Depressing plunger operates valve. Used to detect material position or as an end of travel valve. Plunger travel approx. 3/16 inch (5mm). Actuating force is 7.9 Lbs.

Operating pressure range 0-145 PS1 Actuation force at 90 PSI. is approx. 7.9 Lbs.

For normally open function on 3 way valve, reverse connect ports 1-3. For 2 way operation, plug port 3.

Typical valve body dimensions are 2.5″ L (3 way), 3.15″ L (4 way) x 1.375″ H x .75″ W. Mounting hole 5/8″ diameter.

Through body mounting holes 3/16″ dia.

Plunger diameter is 0.25″ and extends 0.875″ from valve body. Plunger travel is 0.1875″ ? 0.04″

For valve specifications see appendix. For detail dimensions contact factory.

Used as position or end of travel detector. Valve configurations include pneumatic reset types which can be used in conjunction with pushbuttons or other control devices to manually or automatically reset valve. A double plunger is also available which can be used on machine carriages to reverse direction of travel. Operating force is 7.9 Lbs. and plunger travel is approx. 3/16 inch (5 mm).

Operating pressure range 0-145 PSI, Actuation force at 90 PSI, is approx. 7.9 Lbs.

For normally open function on 3 way valve reverse connect ports 1-3. For 2 way operation, plug port 3.

Typical valve body dimensions are 2.5″ L (3 way). 3.15″ L (4 way) x 1.375″ H x 0.75″ W. Add 1″ to L dim for pneumatic reset types. Through body mounting holes 3/16″ dia.

Plunger diameter is 0.25″ and extends .669″ from valve body. Plunger travel Is 1875″ ? 0.04″

For valve specifications see appendix. For detail dimensions contact factory.

Valves are similar to units above except have been modified with special seals and springs for use in vacuum applications.

Operating pressure range is 0 to 145 PSI. Pilot port size is 1/8. Actuation pressure (pilot pressure) is 35 PSI minimum.

Operating pressure range is 0 to 145 PSI. Pilot port size is 1/8. Actuation pressure (pilot pressure) is 35 PSI minimum.

Through body mounting holes are 3/16″ for 1/8 and 1/4 ported valves, 1/4″ for 1/2 ported valves.

For valve specifications see appendix. For detail dimensions contact factory.

Used as position or end of travel detector. Valve configurations include pneumatic reset types which can be used in conjunction with pushbuttons or other control devices to manually or automatically reset valve. A double plunger is also available which can be used on machine carriages to reverse direction of travel. Operating force is 7.9 Lbs. and plunger travel is approx. 3/16 inch (5 mm).

Operating pressure range 0-145 PSI, Actuation force at 90 PSI, is approx. 7.9 Lbs.

For normally open function on 3 way valve reverse connect ports 1-3. For 2 way operation, plug port 3.

Typical valve body dimensions are 2.5″ L (3 way). 3.15″ L (4 way) x 1.375″ H x 0.75″ W. Add 1″ to L dim for pneumatic reset types. Through body mounting holes 3/16″ dia.

Plunger diameter is 0.25″ and extends .669″ from valve body. Plunger travel Is 1875″ ? 0.04″

For valve specifications see appendix. For detail dimensions contact factory.

Used as position or end of travel detector. Valve configurations include pneumatic reset types which can be used in conjunction with pushbuttons or other control devices to manually or automatically reset valve. A double plunger is also available which can be used on machine carriages to reverse direction of travel. Operating force is 7.9 Lbs. and plunger travel is approx. 3/16 inch (5 mm).

Operating pressure range 0-145 PSI, Actuation force at 90 PSI, is approx. 7.9 Lbs.

For normally open function on 3 way valve reverse connect ports 1-3. For 2 way operation, plug port 3.

Typical valve body dimensions are 2.5″ L (3 way). 3.15″ L (4 way) x 1.375″ H x 0.75″ W. Add 1″ to L dim for pneumatic reset types. Through body mounting holes 3/16″ dia.

Plunger diameter is 0.25″ and extends .669″ from valve body. Plunger travel Is 1875″ ? 0.04″

For valve specifications see appendix. For detail dimensions contact factory.
