| Secondary Pressure Regulation Range | 0 – 75 psi (5 Bar) |
| Operating Pressure Range | 0 to 145 psi |
| Regulator Range | 0 to 75 psi |
| Porting | Manifold Mounted |

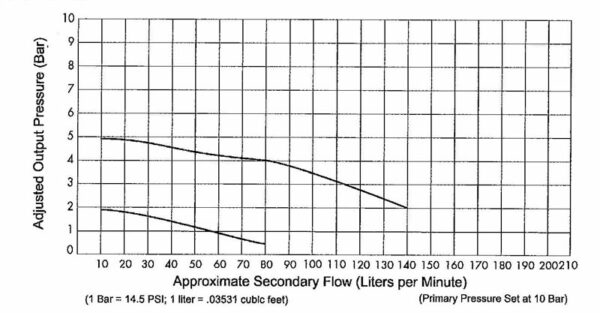

| Flow Rate | Dependent on regulator model. |
| Media | Filtered Air |
| Types | Non-Relieving. Single stage, diaphragm/spring construction |
| Response Time | Dependent on secondary volume. Response average: 45ms at 20% loss of secondary air pressure; 100ms at 50% loss of secondary air pressure. |
| Adjustment | Screw driver Adj. Equipped with locking nut to prevent tampering after setting is made |
| Materials | Buna N Seals Stainless Interior Parts Brass Interior Parts Molded POM Housing |
| Operating Ambient | 0 to +60 ?C 32 to 140 ?F |
| Height | 1 9/16 in. |
| Width | 1 3/16 in? |
| Weight | 2 oz. |

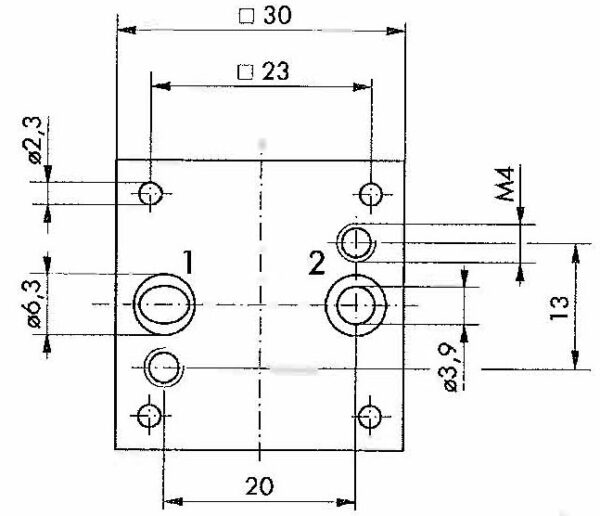

| Drilling Plan | Regulator Bottom View (Dimensions in millimeters) |
Relieving type regulators allow excessive pressure on the secondary side of the regulator to bleed off to the atmosphere, helping maintain steady pressure. Non-relieving types are used where pressure build up is not a concern as in air motors, or air gun applications etc.
