| Technical Data | Solenoid door lock self-locking (SL) and active-locking (AL) |
| Operating Voltage | 24 V DC & 12 V DC(another operating Voltage on request) |
| Power Consumption | 36 W, 10% Duty cycle(short impulse at least 100 ms) |
| Dimension(WxLxD) | 70x70x18mm |
| Weight | Approx. 150g | Maximum static Holding force | 1600N |
| Maximum load force for electrical unlocking | 400N |
| Operating temperature | 0-80?C(other temperature renges on request) |
| Lifetime | 100.00 switching cycles |
Shock resistance According to DIN EN 60068-2-27 | AL:40g(100g/11ms available as customised design) |
| Approval | UL-listed materials are Applied |
STANDARD KUHNKE SOLENOID DOOR LOCK
Previous product
Item # 75022-62-21 Contact Us for Pricing and Orders Due to continuing supply chain issues and frequent price changes, please contact us directly at: Phone: 800-221-0714 or 732-291-3334 Dial extensions: 307 or 334 for pricing and delivery times and for placing orders.
Next product
Item # PT45K Contact Us for Pricing and Orders Due to continuing supply chain issues and frequent price changes, please contact us directly at: Phone: 800-221-0714 or 732-291-3334 Dial extensions: 307 or 334 for pricing and delivery times and for placing orders.
Close
Price Summary
- $156.59
- $156.59
- $156.59
In Stock

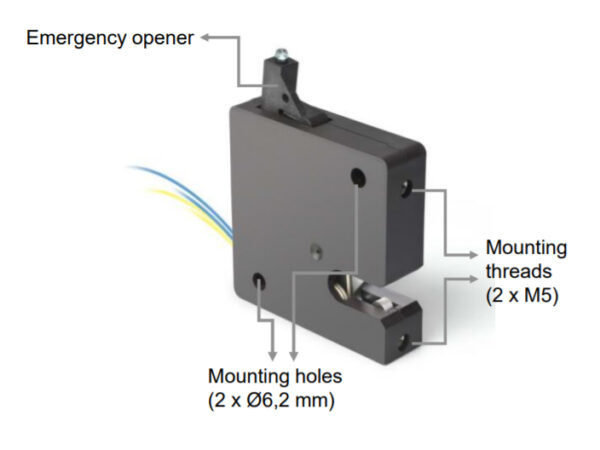

Highlights:
- Compact and robust design
- Plug and Lock
- Equipped with emergency opener
- Equipped with microswitch for
locked position
- Easy to adapt for various
applications.
Compare
Description
Additional information
| Weight | 0.19 lbs |
|---|
