|Color||Yellow – Black|
|Operating Pressure Range||25 to 150 psi (Detent Mode)|
45 to 150 psi (Spring Mode)
|Connections||1/8 NPT ports|
|Operating Ambient||2 to 65 ºC|
35 to 150 ºF
|Length||2 5/8 in.|
|Depth||1 1/2 in.|
|Width||2 1/8 in.|
|Above Panel Dimensions||5/8 in.|
|Panel Drilling Dia.||1 3/16 in.|

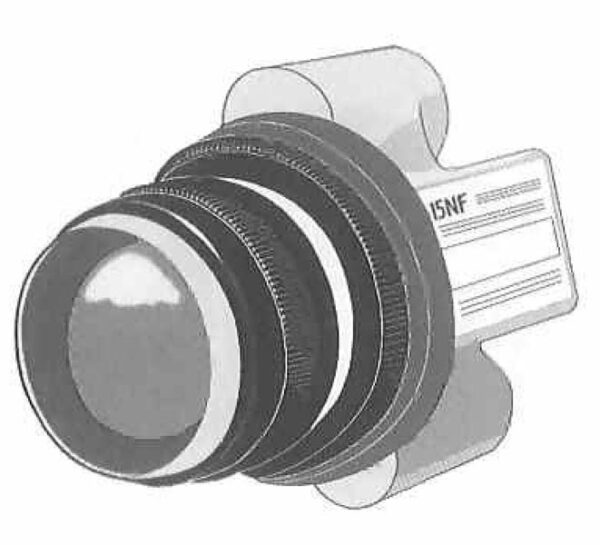

The rear of the indicator has 2 ports and a spring clip window. The unit is shipped with spring clip set for spring return and for the supply pressure to be connected to port 1. To reverse the colors (ie. from red-green to green-red), move the spring clip to the groove adjacent to port 1, and connect the air supply to port 2. To use the indicator in the detent mode, move the spring clip to the center position and connect the switching air inputs to both ports to control the indicator position.
