| Secondary Pressure Regulation Range | 0 – 75 psi (5 Bar) |
| Operating Pressure Range | 0 to 145 psi |
| Port Type | Metric 1/8 Ports |
| Regulator Range | 0 to 75 psi |
| Porting | 10-32 (M5) or 1/8 |

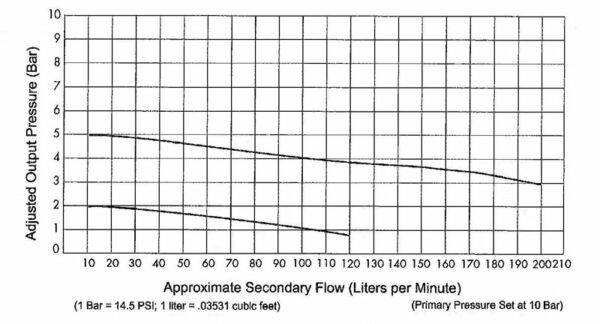

| Flow Rate | Dependent on regulator model. |
| Media | Filtered Air |
| Types | Non-Relieving. Single stage, diaphragm/spring construction |
| Response Time | Dependent on secondary volume. Response average: 45ms at 20% loss of secondary air pressure; 100ms at 50% loss of secondary air pressure. |
| Adjustment | Equipped with locking nut to prevent tampering after setting is made
Screw driver |
| Materials | Buna N Seals
Brass Housing (Nickel Plated) Stainless Interior Parts Brass Interior Parts Polyamide Cover |
| Operating Ambient | 0 to +60 ?C
32 to 140 ?F |
| Height | 1 5/8 in. |
| Width | 1 3/16 in? |
| Weight | 6 oz. |
| Mounting | Via (2) 10-32 tapped holes on side of housing
Mounting bracket available |
| Operation | Relieving type regulators allow excessive pressure on the secondary side of the regulator to bleed off to the atmosphere, helping maintain steady pressure. Non-relieving types are used where pressure build up is not a concern as in air motors, or air gun |
Item # 48250-00-50-10
Previous product
48250-00-10-10
Call for Price
Next product
Item # 48255-50US
Call for Price
Call for Price
Close
Price Summary
- $110.61
- $110.61
- $110.61
In Stock
Highlights:
The Series 48 miniature regulator has characteristics similar to the Series 50 miniature regulator. The unit, however, is specially designed for systems where constant adjustment of pressure is not necessary.
The Series 48 regulator is designed for mounting in panel interiors. Two (10-32) tapped holes are provided in the side of the housing for attachment to panel or mounting brackets. Ports (2) are 180? apart on the sides of the unit housing.
A variety of regulation ranges is available to suit most applications. Special designs are available.
Description
Additional information
| Weight | 0.12 lbs |
|---|
