| Secondary Pressure Regulation Range | 0 – 115 psi (8 Bar) |
| Port Type | Metric G 1/8 ports |
| Operating Pressure Range | 0 to 145 psi |
| Regulator Range | 0 to 115 psi |
| Porting | 1/8 G |

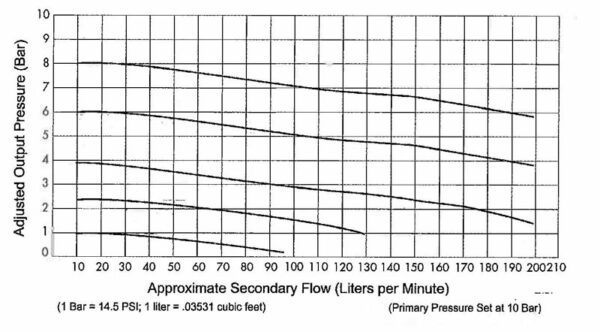

| Flow Rate | Dependent on regulator model. |
| Media | Filtered Air |
| Types | Non-Relieving. Single stage, diaphragm/spring construction |
| Response Time | Dependent on secondary volume. Response average: 45ms at 20% loss of secondary air pressure; 100ms at 50% loss of secondary air pressure. |
| Adjustment | Knob Adj. Equipped with locking nut to prevent tampering after setting is made |
| Materials | Buna N Seals Brass Housing (Nickel Plated) Stainless Interior Parts Brass Interior Parts |
| Operating Ambient | 0 to +60 ?C 32 to 140 ?F |
| Height | 2 5/16 in. |
| Width | 1 3/16 in? |
| Weight | 9 1/2 oz. |
| Drilling Plan | Equipped with mounting nut. Behind panel depth – 1 1/8″. Mounts in 1″ dia. hole. |
Item # 50780-00-80-10
Previous product
Item # 50780-00-80-00 Call for Price
Next product
Item # 50780-00US Call for Price
Call for Price
Close
Price Summary
- $129.91
- $129.91
- $129.91
In Stock
Highlights:
Compare The miniature Series 50 regulator provides regulation of air pressures from 0 to 115 PSI. The regulator is available in both relieving and non-relieving versions. Housing is nickel-plated brass.
The regulator is supplied with a panel nut for mounting in a 1 inch diameter hole. A large brass knob provides for adjustment throughout the regulator’s range. A setting lock nut is included to prevent tampering after adjustment. The regulator has a third port for connection of a pressure gauge. Primary and secondary ports are 180? apart on the side of the regulator body.
Several adjustment ranges are available for close regulation in most applications. Special designs are available.
Category: Miniature Pressure Regulator
Description
Additional information
| Weight | 0.19 lbs |
|---|
Reviews (0)
Be the first to review “Item # 50780-00-80-10” Cancel reply
You must be logged in to post a review.
