Item # 75023-23-41


Price Summary
  • $69.47
  • $69.47
  • $69.47
In Stock

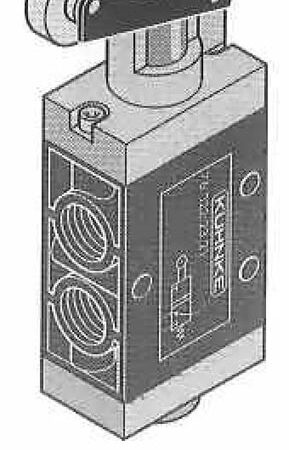

Used as a pneumatic limit switch or position detector. Roller arm travel is 3/8? (10mm). Actuating force is 4.5 Lbs. Options include valves with pneumatic reset used in conjunction with other controlling devices to reset valve. A double roller lever valve can be used on machine carriages to reverse direction of travel.

Operating pressure range is 0-145 PSI. Actuation force @ 90 PSI, is approx. 4.5 Lbs.

For normally open function on 3 way valve, reverse connect ports 1-3. For 2 way operation, plug port 3.

Typical valve body dimensions are 2.5? L (3 way), 3.15? L (4 way) x 1.375? H x .75? W. Add 1? to L dim. for pneumatic reset types. Through body mounting holes are 3/16? diameter.

Roller Lever extends 1.343? beyond body and travel is .39? +/- .04?.

For valve specifications see appendix. For detail dimensions contact factory.

Description4 Way Spring Return
Port Type1/8 NPT Ports (USA Std.)
Orifice0.236 in.

6 mm

Body No.2S
Length3.15 in.
Height1.375 in.
Width0.75 in.
Body Mounting Hole3/16 in.
Operating Pressure Range0 to 145 psi
Actuation Force @ 90 PSIApprox. 4.5 lbs.
Flow @ 45 PSI17.6 SCFM
Flow @ 90 PSI31.7 SCFM
Flow @ 145 PSI51.5 SCFM
Flow @ 3 Bar500 lpm
Flow @ 6 Bar900 lpm
Flow @ 10 Bar1460 lpm

Intended Use-?Series 75 and 76 valves are intended for general purpose industrial applications utilizing normal shop air supply systems. For special applications with other media or other environments, contact Kuhnke.

Media-?Compressed air or other neutral gases, properly filtered. For applications on liquids contact Kuhnke.

Lubrication-?Valves operate on lubricated or non-lubricated systems. After using components in a lubricated system, do not switch to an un lubricated system. Avoid over lubrication.

Vacuum Applications-?Spool Valve designs can be applied on vacuum systems. For applications using poppet valves, use only specially assembled valves shown in the catalog.

Dimensions and Design Changes-?All dimensions in this catalog are approximate, if necessary, detailed drawings can be obtained from Kuhnke or from one of the Kuhnke websites. Dimensions, valve design and materials are subject to change without notice.

Metric and NPT threads-?Although similar in size, valve port threads in metric ported valves are different from NPT versions. NPT versions have a tapered thread that is used to form a seal with the fitting thread. Metric thread is straight, and the seal is provided by an o-ring or washer normally included with the connection fitting. Metric fittings can be used on NPT threaded valves, but NPT fittings cannot be used on metric threaded valves.

Additional information
Weight0.25 lbs
