Item # 76044-25-39


Price Summary
  • $159.67
  • $159.67
  • $159.67
In Stock

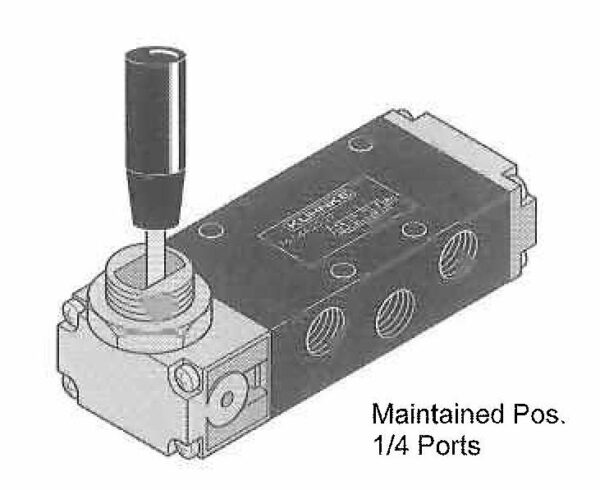

Three position valves are used mostly to position cylinders manually. The operator controls the cylinder direction by moving the lever side to side. Valves with all ports open in the center position allow the cylinder piston rod to move freely, while valves with all ports closed in the center position will hold the cylinder in the desired position when the lever is returned lo center. Valves can be panel or body mounted.

Operating pressure range Is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.

Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Through body mounting holes are 3/16″ dia.

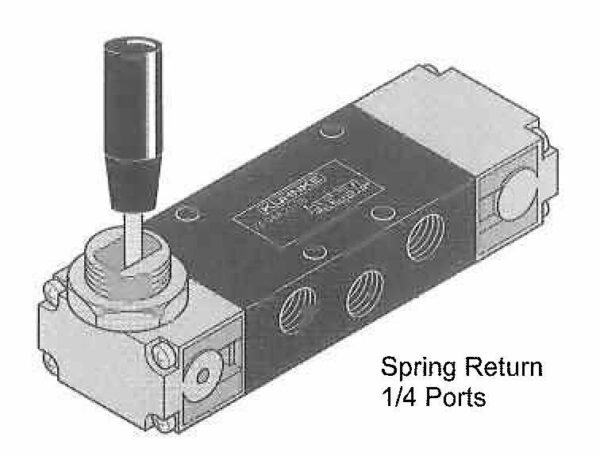

Typical dimensions of spring return 1/8 ported valves are 4″ L x 1.375″ W x .75″ D. For 1/4 ported valves: 5.375″ L x 2″ W x 1″ D. Above panel dimensions including handle for 1/8-ported valves – 2.5″. 1/4-ported valves -3.375″. Allow space for fittings and tubing.

For valve specifications see appendix. For detail dimensions contact factory.

DescriptionDouble Air Pilot All ports open in center position.
Port Type1/4 Metric Ports (European Std.)
Orifice0.315 in.

8 mm

Body No.5S
Length5 1/2 in.
Width1 in.
Height2 in.
Operating Pressure Range35 to 145 psi
Body Mounting Hole3/16 in.
Flow @ 45 PSI22.4 SCFM
Flow @ 90 PSI39.2 SCFM
Flow @ 145 PSI63.5 SCFM
Flow @ 3 Bar635 lpm
Flow @ 6 Bar1110 lpm
Flow @ 10 Bar1800 lpm

Intended Use-?Series 75 and 76 valves are intended for general purpose industrial applications utilizing normal shop air supply systems. For special applications with other media or other environments, contact Kuhnke.

Media-?Compressed air or other neutral gases, properly filtered. For applications on liquids contact Kuhnke.

Lubrication-?Valves operate on lubricated or non-lubricated systems. After using components in a lubricated system, do not switch to an un lubricated system. Avoid over lubrication.

Vacuum Applications-?Spool Valve designs can be applied on vacuum systems. For applications using poppet valves, use only specially assembled valves shown in the catalog.

Dimensions and Design Changes-?All dimensions in this catalog are approximate, if necessary, detailed drawings can be obtained from Kuhnke or from one of the Kuhnke websites. Dimensions, valve design and materials are subject to change without notice.

Metric and NPT threads-?Although similar in size, valve port threads in metric ported valves are different from NPT versions. NPT versions have a tapered thread that is used to form a seal with the fitting thread. Metric thread is straight, and the seal is provided by an o-ring or washer normally included with the connection fitting. Metric fittings can be used on NPT threaded valves, but NPT fittings cannot be used on metric threaded valves.

Additional information
Weight0.25 lbs
