Item # 76047-74-41

$169.04

Close
Price Summary
  • $169.04
  • $169.04
  • $169.04
In Stock
Highlights:

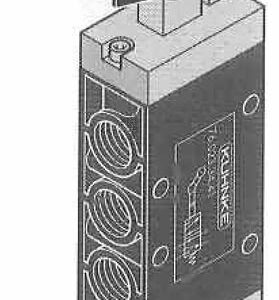

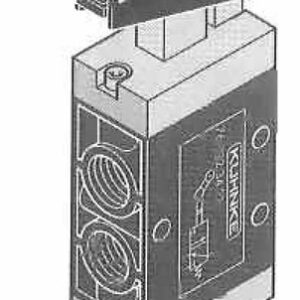

One way roller lever operates valve only in one direction. Actuation force is 14 ounces and roller lever travel is approx. 5/32 inch (4mm).

Operating pressure range 35-145 PSI. Minimum pressure 35 PSI. Actuation force at 90 PSI, is approx. 14 ounces.

Approximate valve body dimensions for 1/8 ported valves are 2.75″ L (3 way), 3.5″ L (4 way) x 1.375″ H x .75″ W. Approximate valve body dimensions for 1/4 ported valves are 4.75″ L x 2″ H x 1″ W. Roller arm extends 1.81″ beyond body and travel is .156 in actuate direction and .5″ in non actuate direction. Through body mounting holes 3/16″.

For valve specifications see appendix. For detail dimensions contact factory.

Compare
Description
Description4 Way Spring Return
Port Type1/4 Metric Ports (European Std.)
Orifice0.315 in.

8 mm

Body No.7P
Length3.5 in.
Height1.375 in.
Width0.75 in.
Body Mounting Hole3/16 in.
Operating Pressure Range35 to 145 psi
Actuation Force @ 90 PSIApprox. 14 ounces.
Cv1.11
Kv15.8
Flow @ 45 PSI28.9 SCFM
Flow @ 90 PSI50.5 SCFM
Flow @ 145 PSI81.9 SCFM
Flow @ 3 Bar820 lpm
Flow @ 6 Bar1430 lpm
Flow @ 10 Bar2320 lpm

Intended Use-?Series 75 and 76 valves are intended for general purpose industrial applications utilizing normal shop air supply systems. For special applications with other media or other environments, contact Kuhnke.

Media-?Compressed air or other neutral gases, properly filtered. For applications on liquids contact Kuhnke.

Lubrication-?Valves operate on lubricated or non-lubricated systems. After using components in a lubricated system, do not switch to an un lubricated system. Avoid over lubrication.

Vacuum Applications-?Spool Valve designs can be applied on vacuum systems. For applications using poppet valves, use only specially assembled valves shown in the catalog.

Dimensions and Design Changes-?All dimensions in this catalog are approximate, if necessary, detailed drawings can be obtained from Kuhnke or from one of the Kuhnke websites. Dimensions, valve design and materials are subject to change without notice.

Metric and NPT threads-?Although similar in size, valve port threads in metric ported valves are different from NPT versions. NPT versions have a tapered thread that is used to form a seal with the fitting thread. Metric thread is straight, and the seal is provided by an o-ring or washer normally included with the connection fitting. Metric fittings can be used on NPT threaded valves, but NPT fittings cannot be used on metric threaded valves.

Additional information
Weight0.25 lbs
