Item # 76023-23-42
Highlights:
Used as a pneumatic limit switch or position detector. Roller arm travel is 3/8? (10mm). Actuating force is 4.5 Lbs. Options include valves with pneumatic reset used in conjunction with other controlling devices to reset valve. A double roller lever valve can be used on machine carriages to reverse direction of travel.
Operating pressure range is 0-145 PSI. Actuation force @ 90 PSI, is approx. 4.5 Lbs.
For normally open function on 3 way valve, reverse connect ports 1-3. For 2 way operation, plug port 3.
Typical valve body dimensions are 2.5? L (3 way), 3.15? L (4 way) x 1.375? H x .75? W. Add 1? to L dim. for pneumatic reset types. Through body mounting holes are 3/16? diameter.
Roller Lever extends 1.343? beyond body and travel is .39? +/- .04?.
For valve specifications see appendix. For detail dimensions contact factory.

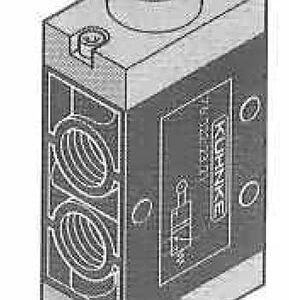

Item # 76023-24-41
Highlights:
One way roller lever operates valve only in one direction. Can be used as safety valve for limiting travel on machinery. Roller arm travel is 1/2″ (12mm). Actuating force is 4.5 Lbs.
Operating pressure range 0-145 PSI. Actuation force at 90 PSI, is approx. 4.5 Lbs.
For normally open function on 3 way valve, reverse connect ports 1-3. For 2 way operation, plug port 3.
Valve body dimensions are 2.5″ L (3 way), 3.15″ L (4 way) x 1.375″ W x .75″ H. Roller Lever extends 2″ beyond body and travel is .5″ in actuate direction and non actuate direction. Through body holes are 3/16″ diameter.
For valve specifications see appendix. For detail dimensions contact factory.

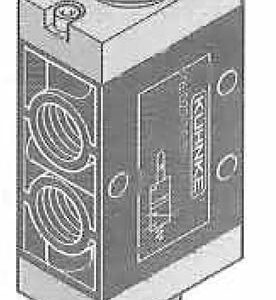

Item # 76023-25-40
Highlights:
Lever valves can be used to manually switch air supplies on equipment or operate cylinders and other devices. Valves can be panel mounted or fastened to a surface via body mounting holes. Handles have a contemporary black molded grip and require 3.4 lbs. of force to operate. Valves are available in spring return, pneumatic return and maintained position versions.
Operating pressure range is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.
For normally open function on 3 way valves, reverse connect ports 1-3. For 2 way operation, plug port 3.
Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4 ported valves, 7/8 inch. Through body mounting holes are 3/16″ dia.
Typical dimensions of 4 way 1/8 ported valves are 3.75″ L x 1.375″ W x 0.75″ D. For 1/4 ported valves: 4.75″ L x 2″ W x 1″ D. For 3 way valves subtract 0.75″ from L dimension. For pneumatic return valves add 1″ to L dimension. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.
Item # 76023-25-41
Highlights:
Lever valves can be used to manually switch air supplies on equipment or operate cylinders and other devices. Valves can be panel mounted or fastened to a surface via body mounting holes. Handles have a contemporary black molded grip and require 3.4 lbs. of force to operate. Valves are available in spring return, pneumatic return and maintained position versions.
Operating pressure range is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.
For normally open function on 3 way valves, reverse connect ports 1-3. For 2 way operation, plug port 3.
Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4 ported valves, 7/8 inch. Through body mounting holes are 3/16″ dia.
Typical dimensions of 4 way 1/8 ported valves are 3.75″ L x 1.375″ W x 0.75″ D. For 1/4 ported valves: 4.75″ L x 2″ W x 1″ D. For 3 way valves subtract 0.75″ from L dimension. For pneumatic return valves add 1″ to L dimension. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.
Item # 76023-25-42
Highlights:
Lever valves can be used to manually switch air supplies on equipment or operate cylinders and other devices. Valves can be panel mounted or fastened to a surface via body mounting holes. Handles have a contemporary black molded grip and require 3.4 lbs. of force to operate. Valves are available in spring return, pneumatic return and maintained position versions.
Operating pressure range is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.
For normally open function on 3 way valves, reverse connect ports 1-3. For 2 way operation, plug port 3.
Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4 ported valves, 7/8 inch. Through body mounting holes are 3/16″ dia.
Typical dimensions of 4 way 1/8 ported valves are 3.75″ L x 1.375″ W x 0.75″ D. For 1/4 ported valves: 4.75″ L x 2″ W x 1″ D. For 3 way valves subtract 0.75″ from L dimension. For pneumatic return valves add 1″ to L dimension. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.

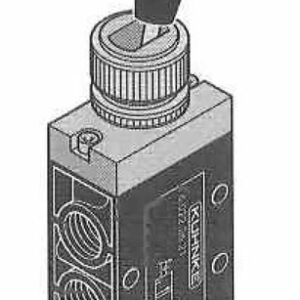

Item # 76023-26-41
Highlights:
Toggle Lever valves can be used to manually switch air supplies on equipment. Valves are designed for panel mounting. Handles have a contemporary black molded grip and require 3.4 lbs. of force to operate.
Operating pressure range is 0 to 145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.
For normally open function on 3 way valve reverse connect ports 1-3. For 2 way operation, plug port 3.
Panel mounting hole is 5/8 inch diameter, maximum panel thickness 1/8 inch. Above panel dimensions are 8125″ Dia. x 2″ H.
Behind panel dimensions of 3 way valve are 2.875″ D x 1.375″ H x 0.75″ W; 4 way valve- 4.625″ D x 1.375″ H x 0.75″ W.
Valve through body mounting holes are 3/16″ diameter. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.

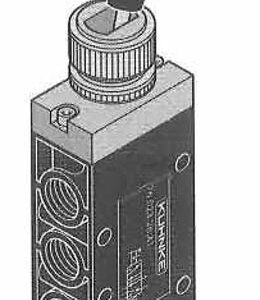

Item # 76023-27-40
Highlights:
Knob valves have a small travel of about 1/4 inch and can be easily operated with the palm of a hand. Knobs are constructed of sturdy black molded material. Available in spring return, pneumatic return and push-pull versions.
Operating pressure range is 0-145 PSI. Actuation force at 90 PSI: 1/8 port approx. 3.4 Lbs., 1/4 port 11.3 Lbs.
For normally open function on 3 way valves reverse connect ports 1-3. For 2 way operation, plug port 3. Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Above panel dimensions: 1/8-ported are 1″ Dia. x 1.5? H: 1/4-ported -1.5″ Dia. x 2.25″ H.
Typical behind panel dimensions of 4 way 1/8 ported valves are 2.5″ D x 1.375″ W x 0.75″ H; 1/4 ported valves- 4″ D x 2″ W x 1″ H. For 3 way valves subtract 0.75″ from depth. For pneumatic return add 1″ to depth dimension. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.
Item # 76023-27-41
Highlights:
Knob valves have a small travel of about 1/4 inch and can be easily operated with the palm of a hand. Knobs are constructed of sturdy black molded material. Available in spring return, pneumatic return and push-pull versions.
Operating pressure range is 0-145 PSI. Actuation force at 90 PSI: 1/8 port approx. 3.4 Lbs., 1/4 port 11.3 Lbs.
For normally open function on 3 way valves reverse connect ports 1-3. For 2 way operation, plug port 3. Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Above panel dimensions: 1/8-ported are 1″ Dia. x 1.5? H: 1/4-ported -1.5″ Dia. x 2.25″ H.
Typical behind panel dimensions of 4 way 1/8 ported valves are 2.5″ D x 1.375″ W x 0.75″ H; 1/4 ported valves- 4″ D x 2″ W x 1″ H. For 3 way valves subtract 0.75″ from depth. For pneumatic return add 1″ to depth dimension. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.
Item # 76023-27-42
Highlights:
Knob valves have a small travel of about 1/4 inch and can be easily operated with the palm of a hand. Knobs are constructed of sturdy black molded material. Available in spring return, pneumatic return and push-pull versions.
Operating pressure range is 0-145 PSI. Actuation force at 90 PSI: 1/8 port approx. 3.4 Lbs., 1/4 port 11.3 Lbs.
For normally open function on 3 way valves reverse connect ports 1-3. For 2 way operation, plug port 3. Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Above panel dimensions: 1/8-ported are 1″ Dia. x 1.5? H: 1/4-ported -1.5″ Dia. x 2.25″ H.
Typical behind panel dimensions of 4 way 1/8 ported valves are 2.5″ D x 1.375″ W x 0.75″ H; 1/4 ported valves- 4″ D x 2″ W x 1″ H. For 3 way valves subtract 0.75″ from depth. For pneumatic return add 1″ to depth dimension. Allow space for fittings and tubing.
For valve specifications see appendix. For detail dimensions contact factory.

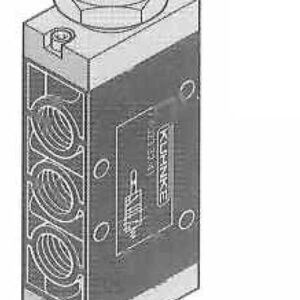

Item # 76023-32-41
Highlights:
Can be used as a door closed switch, material position detector or an end of travel detector. A double plunger is available which can be used on machine carriages to reverse direction of travel. Air pilot assist reduces actuation force to 1.8 lbs., minimum supply pressure 35 PSI.
Operating pressure range 35-145 PSI Actuation force at 90 PSI. is approx. 1.8 Lbs.
Approximate valve body dimensions for 1/8 ported valves are 3.5″ L (4 way body no. 2S) x 1.375″ H x 0.75″ W. For body no. 10P- 4.75″ L x 2″ H x 1″W. Approximate dimensions for 1/4 ported valves are 4.75″ L x 2″ H x 1″ W. Mounting hole 5/8″ diameter.
Plunger diameter 5/32″ and extends 0.625″ from valve body. Plunger travel is 0.125″.
For valve specifications see appendix. For detail dimensions contact factory.

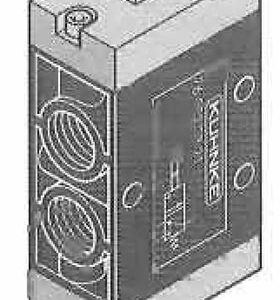

Item # 76023-33-41
Highlights:
sed as a pneumatic limit switch or position detector. Actuation force is 14 ounces and roller lever travel is approx. 5/32 inch (4mm).
Operating pressure range is 35-145 PSI. Minimum pressure 35 PSI. Actuation force at 90 PSI, is approx. 14 ounces.
Approximate valve body dimensions for 1/8 ported valves are 2.75″ L (3 way), 3.5″ L (4 way) x 1.375″ H x .75″ W. Approximate valve body dimensions for 1/4 ported valves are 4.75″ L x 2″ H x 1″ W. Roller lever extends 1.1875″ and travel is .156″.
Through body mounting holes 3/16″.
For valve specifications see appendix. For detail dimensions contact factory.

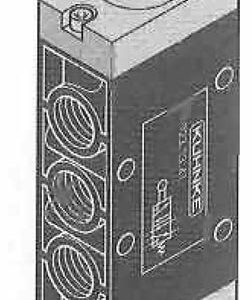

Item # 76023-34-41
Highlights:
One way roller lever operates valve only in one direction. Actuation force is 14 ounces and roller lever travel is approx. 5/32 inch (4mm).
Operating pressure range 35-145 PSI. Minimum pressure 35 PSI. Actuation force at 90 PSI, is approx. 14 ounces.
Approximate valve body dimensions for 1/8 ported valves are 2.75″ L (3 way), 3.5″ L (4 way) x 1.375″ H x .75″ W. Approximate valve body dimensions for 1/4 ported valves are 4.75″ L x 2″ H x 1″ W. Roller arm extends 1.81″ beyond body and travel is .156 in actuate direction and .5″ in non actuate direction. Through body mounting holes 3/16″.
For valve specifications see appendix. For detail dimensions contact factory.
