Item # 76077-92-00
Highlights:
NAMUR 1/4 ported valves are designed to a European specification that standardizes the mounting holes amongst manufacturers. Valves are in line mounted and are available in several configurations.
For technical details of valves, contact factory. See accessory section for manifolds and sub bases.
Item # 76083-71-41
Highlights:
Valves are constructed to the European ISO standard, fit on ISO manifolds or sub-plates and are interchangeable amongst manufacturers. Standard pneumatically operated valves are listed.
Single air piloted ISO 1 and ISO 2 valves are available with manual resets (ISO pump valves). A pneumatic “not/not” valve is also available.
Contact factory for Details.
For technical details of ISO valves contact factory. See accessory section for manifolds and sub bases.
Item # 76083-71-42
Highlights:
Valves are constructed to the European ISO standard, fit on ISO manifolds or sub-plates and are interchangeable amongst manufacturers. Standard pneumatically operated valves are listed.
Single air piloted ISO 1 and ISO 2 valves are available with manual resets (ISO pump valves). A pneumatic “not/not” valve is also available.
Contact factory for Details.
For technical details of ISO valves contact factory. See accessory section for manifolds and sub bases.
Item # 76083-71-47
Highlights:
Valves are constructed to the European ISO standard, fit on ISO manifolds or sub-plates and are interchangeable amongst manufacturers. Standard pneumatically operated valves are listed.
Single air piloted ISO 1 and ISO 2 valves are available with manual resets (ISO pump valves). A pneumatic “not/not” valve is also available.
Contact factory for Details.
For technical details of ISO valves contact factory. See accessory section for manifolds and sub bases.
Item # 76083-89-00
Highlights:

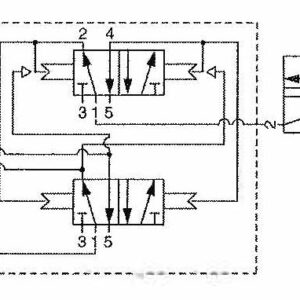

The Monostable Flip-Flop valve provides a 4 way switched output from an electrical pulse signal of at least 300 ms in length. When the solenoid is energized, the valve output position changes. The valve maintains position until the next electrical pulse signal is applied. Minimum operating pressure 35 PSI.
Operating pressure range 35 to 145 PSI. Actuation force (pilot pressure): 35 PSI minimum.
Pilot port size is 1/8. Mounting via 4 through body holes 3/16″ Dia.
Oscillator valve will not operate if applied on vented applications such as an air gun. Working ports must have a connected defined volume.
For valve specifications see appendix. For detail dimensions contact factory.
Item # 76083-89-42
Highlights:

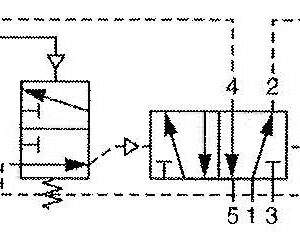

Valve can be used to oscillate a double acting cylinder. Applications include mixing, stirring or sawing devices where time critical cycling is not required. While the solenoid is energized, the valve oscillates. Speed is dependent on connected volume and line pressure, and can be controlled by the addition of flow control valves on the cylinder input ports. Typical speed is 16 cycles per minute at 90 PSI. Minimum operating pressure 35 PSI.
Operating pressure range 35 to 145 PSI. Actuation force (pilot pressure): 35 PSI minimum.
Pilot port size is 1/8. Mounting via 4 through body holes 3/16″ Dia.
Oscillator valve will not operate if applied on vented applications such as an air gun. Working ports must have a connected defined volume.
For valve specifications see appendix. For detail dimensions contact factory.
Item # 76083-90-00
Highlights:
Valve can be used to oscillate a double acting cylinder. Applications include mixing, stirring or sawing devices where time critical cycling is not required. While the solenoid is energized, the valve oscillates. Speed is dependent on connected volume and line pressure, and can be controlled by the addition of flow control valves on the cylinder input ports. Typical speed is 16 cycles per minute at 90 PSI. Minimum operating pressure 35 PSI.
Operating pressure range 35 to 145 PSI. Actuation force (pilot pressure): 35 PSI minimum.
Pilot port size is 1/8. Mounting via 4 through body holes 3/16″ Dia.
Oscillator valve will not operate if applied on vented applications such as an air gun. Working ports must have a connected defined volume.
For valve specifications see appendix. For detail dimensions contact factory.
Item # 76083-90-42
Highlights:

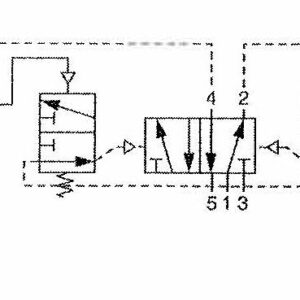

Valve can be used to oscillate a double acting cylinder. Applications include mixing, stirring or sawing devices where time critical cycling is not required. A pneumatic control signal applied to the control port starts valve oscillating. Speed is dependent on connected volume and line pressure, and can be controlled by the addition of flow control valves on the cylinder input ports. Typical speed is 16 cycles per minute at 90 PSI.
Operating pressure range 35 to 145 PSI. Actuation force (pilot pressure): 35 PSI minimum.
Pilot port size is 1/8. Mounting via 4 through body holes 3/16″ Dia.
Oscillator valve will not operate if applied on vented applications such as an air motor. Working ports must have a connected defined volume.
For valve specifications see appendix. For detail dimensions contact factory.
Item # 76083-91-00
Highlights:
Valves are constructed to the European ISO standard permitting interchangeability between manufacturers. ISO valves have a standard mounting configuration. Valves are also available with a European automotive standard coil configuration (CNOMO).
For technical details of ISO valves contact factory. See accessory section for manifolds and sub bases.
Item # 76083-92-00
Highlights:
Valves are constructed to the European ISO standard permitting interchangeability between manufacturers. ISO valves have a standard mounting configuration. Valves are also available with a European automotive standard coil configuration (CNOMO).
For technical details of ISO valves contact factory. See accessory section for manifolds and sub bases.
Item # 76083-94-00
Highlights:
Valves are constructed to the European ISO standard permitting interchangeability between manufacturers. ISO valves have a standard mounting configuration. Valves are also available with a European automotive standard coil configuration (CNOMO).
For technical details of ISO valves contact factory. See accessory section for manifolds and sub bases.
Item # 76083-95-00
Highlights:
Valves are constructed to the European ISO standard permitting interchangeability between manufacturers. ISO valves have a standard mounting configuration. Valves are also available with a European automotive standard coil configuration (CNOMO).
For technical details of ISO valves contact factory. See accessory section for manifolds and sub bases.
