Item # 76043-91-00

Highlights:

Spool valves rely on a stainless steel spool moving within a sleeve to direct flow to the ports of the valve. Spool designs are known for their long life capability. Available in single, double or with priority port actuators. The priority port design overrides the signal from the opposite pilot operator to insure return to home position. Pneumatically actuated spool valves are available in 1/8 and 1/4 port sizes and require a minimum of 35 PSI operating pressure. Valves can be mounted individually using through body holes or assembled on manifolds.

Pilot port size (for actuation): 1/8 for all size valves.

Operating pressure range 35 to 145 PSI. Actuation force (pilot pressure): 35 PSI minimum.

Mounting via 4 through body holes 3/16″ Dia.

For valve specifications see appendix. See accessory section for manifolds if required. For detail dimensions contact factory.

Item # 76043-92-00

Highlights:

Solenoid operated, air piloted spool valves are available in single, double, priority and external air pilot versions. Valve designs use a stainless steel spool moving within a sleeve to direct airflow to the ports of the valve. Spool valves are known for their long life capability.

Valves are available in 1/8 and 1/4 port sizes and have an operating range of 35 to 145 PSI.

Valves include a red manual override and encapsulated coils and can be individually mounted or assembled on manifolds.

Operating pressure range is 35 to 145 PSI. (Use valves with external pilot for switching lower pressures.)

Through body mounting holes are 3/16″.

For valve specifications see appendix. See accessory section for electrical connectors and manifolds. For detail dimensions contact factory.

Item # 76043-94-00

Highlights:

Solenoid operated, air piloted spool valves are available in single, double, priority and external air pilot versions. Valve designs use a stainless steel spool moving within a sleeve to direct airflow to the ports of the valve. Spool valves are known for their long life capability.

Valves are available in 1/8 and 1/4 port sizes and have an operating range of 35 to 145 PSI.

Valves include a red manual override and encapsulated coils and can be individually mounted or assembled on manifolds.

Operating pressure range is 35 to 145 PSI.

Through body mounting holes are 3/16″.

For valve specifications see appendix. See accessory section for electrical connectors. For detail dimensions contact factory.

Item # 76043-95-00

Highlights:

Solenoid operated, air piloted spool valves are available in single, double, priority and external air pilot versions. Valve designs use a stainless steel spool moving within a sleeve to direct airflow to the ports of the valve. Spool valves are known for their long life capability.

Valves are available in 1/8 and 1/4 port sizes and have an operating range of 35 to 145 PSI.

Valves include a red manual override and encapsulated coils and can be individually mounted or assembled on manifolds.

Operating pressure range is 35 to 145 PSI.

Through body mounting holes are 3/16″.

For valve specifications see appendix. See accessory section for electrical connectors. For detail dimensions contact factory.

Item # 76044-02-00

Highlights:

Three position valves can be used to position cylinder piston rods or switch air supplies to alternate devices. In line spool valves are available in 2 versions; with all ports open or all ports closed in the center (off) position. Springs return the valve to the center position when the coil power is switched off. Valves can be individually mounted using through body holes or assembled on manifolds.

Operating pressure range is 35 to 145 PSI. (Use valves with external pilot for switching lower pressures).

Through body mounting holes are 3/16″.

For valve specifications see appendix. See accessory section for connectors and manifolds. For detail dimensions contact factory.

Item # 76044-05-00

Highlights:

Three position valves can be used to position cylinder piston rods or switch air supplies to alternate devices. Flat mounted spool valves are available in 2 versions; with all ports open or all ports closed in the center (off) position. Springs return the valve to the center position when the coil power is switched off.

Operating pressure range is 35 to 145 PSI.

Through body mounting holes are 3/16″.

For valve specifications see appendix. See valve accessory section for electrical connectors. For detail dimensions contact factory.

Item # 76044-12-00

Highlights:

Three position valves can be used to position cylinder piston rods or switch air supplies to alternate devices. In line spool valves are available in 2 versions; with all ports open or all ports closed in the center (off) position. Springs return the valve to the center position when the coil power is switched off. Valves can be individually mounted using through body holes or assembled on manifolds.

Operating pressure range is 35 to 145 PSI. (Use valves with external pilot for switching lower pressures).

Through body mounting holes are 3/16″.

For valve specifications see appendix. See accessory section for connectors and manifolds. For detail dimensions contact factory.

Item # 76044-15-00

Highlights:

Three position valves can be used to position cylinder piston rods or switch air supplies to alternate devices. Flat mounted spool valves are available in 2 versions; with all ports open or all ports closed in the center (off) position. Springs return the valve to the center position when the coil power is switched off.

Operating pressure range is 35 to 145 PSI.

Through body mounting holes are 3/16″.

For valve specifications see appendix. See valve accessory section for electrical connectors. For detail dimensions contact factory.

Item # 76044-25-28

Highlights:

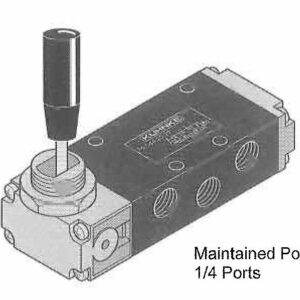

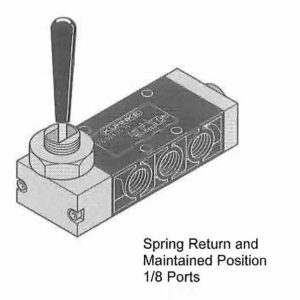

Three position valves are used mostly to position cylinders manually. The operator controls the cylinder direction by moving the lever side to side. Valves with all ports open in the center position allow the cylinder piston rod to move freely, while valves with all ports closed in the center position will hold the cylinder in the desired position when the lever is returned lo center. Valves can be panel or body mounted.

Operating pressure range Is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.

Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Through body mounting holes are 3/16″ dia.

Typical dimensions of spring return 1/8 ported valves are 4″ L x 1.375″ W x .75″ D. For 1/4 ported valves: 5.375″ L x 2″ W x 1″ D. Above panel dimensions including handle for 1/8-ported valves – 2.5″. 1/4-ported valves -3.375″. Allow space for fittings and tubing.

For valve specifications see appendix. For detail dimensions contact factory.

Item # 76044-25-29

Highlights:

Three position valves are used mostly to position cylinders manually. The operator controls the cylinder direction by moving the lever side to side. Valves with all ports open in the center position allow the cylinder piston rod to move freely, while valves with all ports closed in the center position will hold the cylinder in the desired position when the lever is returned lo center. Valves can be panel or body mounted.

Operating pressure range Is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.

Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Through body mounting holes are 3/16″ dia.

Typical dimensions of spring return 1/8 ported valves are 4″ L x 1.375″ W x .75″ D. For 1/4 ported valves: 5.375″ L x 2″ W x 1″ D. Above panel dimensions including handle for 1/8-ported valves – 2.5″. 1/4-ported valves -3.375″. Allow space for fittings and tubing.

For valve specifications see appendix. For detail dimensions contact factory.

Item # 76044-25-38

Highlights:

Three position valves are used mostly to position cylinders manually. The operator controls the cylinder direction by moving the lever side to side. Valves with all ports open in the center position allow the cylinder piston rod to move freely, while valves with all ports closed in the center position will hold the cylinder in the desired position when the lever is returned lo center. Valves can be panel or body mounted.

Operating pressure range Is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.

Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Through body mounting holes are 3/16″ dia.

Typical dimensions of spring return 1/8 ported valves are 4″ L x 1.375″ W x .75″ D. For 1/4 ported valves: 5.375″ L x 2″ W x 1″ D. Above panel dimensions including handle for 1/8-ported valves – 2.5″. 1/4-ported valves -3.375″. Allow space for fittings and tubing.

For valve specifications see appendix. For detail dimensions contact factory.

Item # 76044-25-39

Highlights:

Three position valves are used mostly to position cylinders manually. The operator controls the cylinder direction by moving the lever side to side. Valves with all ports open in the center position allow the cylinder piston rod to move freely, while valves with all ports closed in the center position will hold the cylinder in the desired position when the lever is returned lo center. Valves can be panel or body mounted.

Operating pressure range Is 0-145 PSI. Actuation force at 90 PSI, is approx. 3.4 Lbs.

Panel mounting hole size for 1/8-ported valves is 5/8 inch diameter, for 1/4-ported valves, 7/8 inch. Through body mounting holes are 3/16″ dia.

Typical dimensions of spring return 1/8 ported valves are 4″ L x 1.375″ W x .75″ D. For 1/4 ported valves: 5.375″ L x 2″ W x 1″ D. Above panel dimensions including handle for 1/8-ported valves – 2.5″. 1/4-ported valves -3.375″. Allow space for fittings and tubing.

For valve specifications see appendix. For detail dimensions contact factory.
